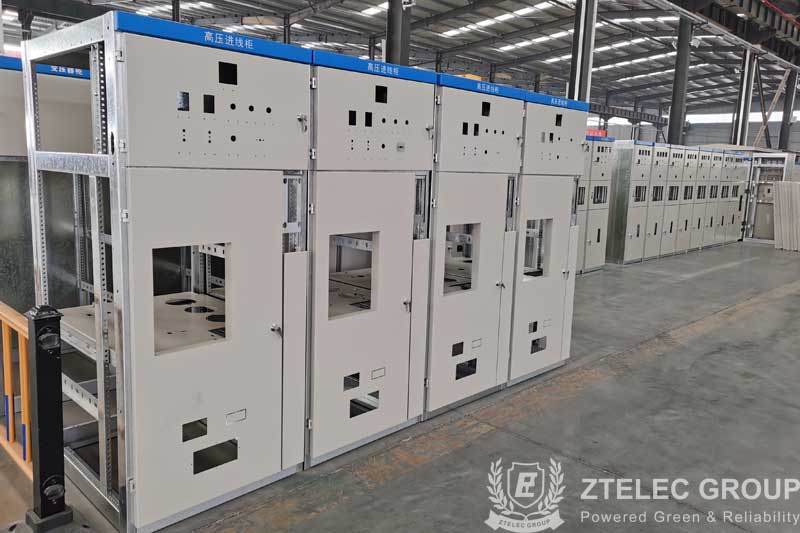

HXGN15-12(L) indoor AC high voltage sulfur hexafluoride ring network switchgear

Overview and Scope of HXGN15-12(L) Indoor AC High Voltage Sulfur Hexafluoride Ring Network Switchgear

HXGN15-12(L) indoor AC high-voltage sulfur fluoride ring network switchgear (hereinafter referred to as "ring network cabinet") is a new generation of sulfur hexafluoride load switch as the main switch and the whole cabinet is air-insulated, suitable for distribution Electrically automated, compact and expandable metal sealing switchgear.

The ring network cabinet has the characteristics of simple structure, flexible operation, reliable interlocking, etc., and can provide satisfactory technical solutions for various applications and different user requirements. The use of sensing technology and the latest protection relays, coupled with advanced technical performance and lightweight and flexible assembly solutions, can fully meet the ever-changing requirements of the market.

Normal Use Conditions of HXGN15-12(L) Indoor AC High Voltage Sulfur Hexafluoride Ring Network Switchgear

1. Altitude: not more than 1000m;

2. Ambient temperature: -25℃ ~ +40℃;

3. The relative humidity of the air: the daily average value is not more than 95%, and the monthly average value is not more than 90%;

4. No serious pollution in the surrounding air, such as dust, smoke, corrosives, flammable gas, gasoline and salt, etc.;

5. Earthquake intensity: 8°;

6. When the conditions of use are different or there are special requirements, please consult with the manufacturer.

Structural Features of HXGN15-12(L) Indoor AC High Voltage Sulfur Hexafluoride Ring Network Switchgear

The ring network cabinet is composed of busbar room, three-station load switch room (or circuit breaker room), cable room, operating mechanism, interlocking mechanism, low-voltage control room, and measurement or metering circuit. Each compartment is separated by steel plates. Avoid the fault location from affecting adjacent rooms.
